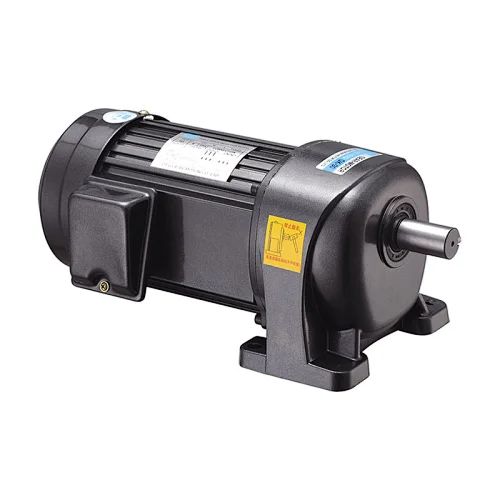

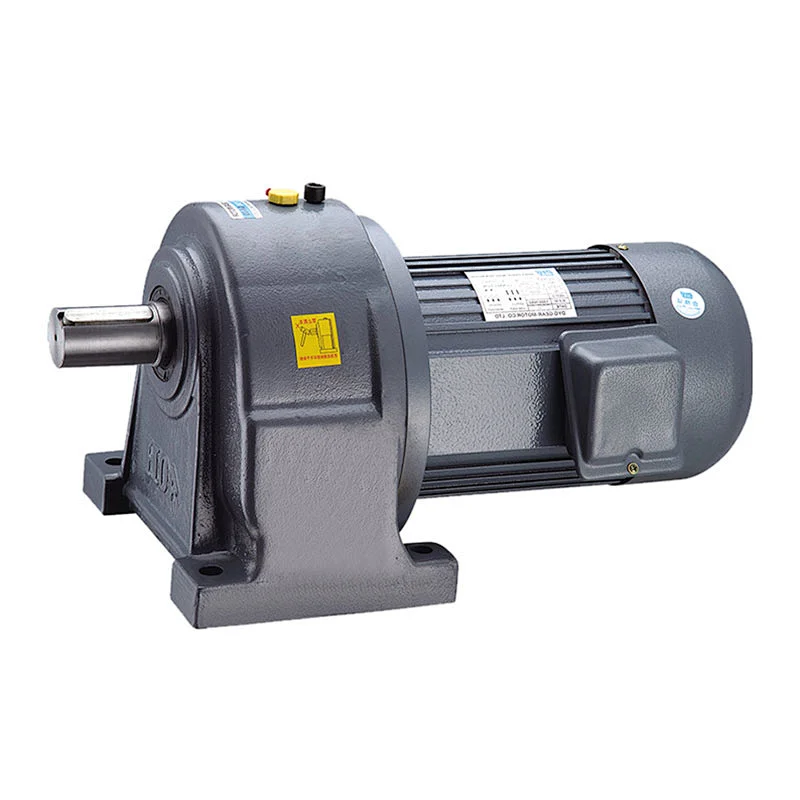

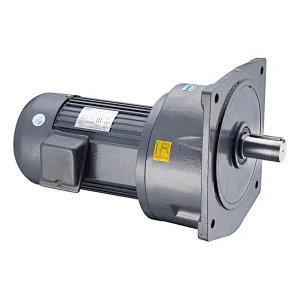

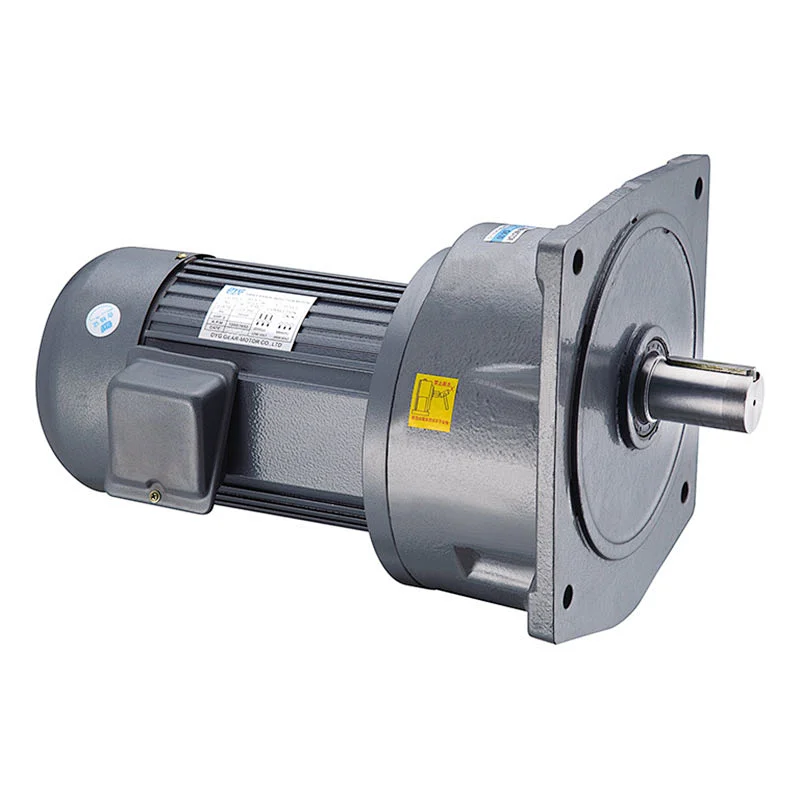

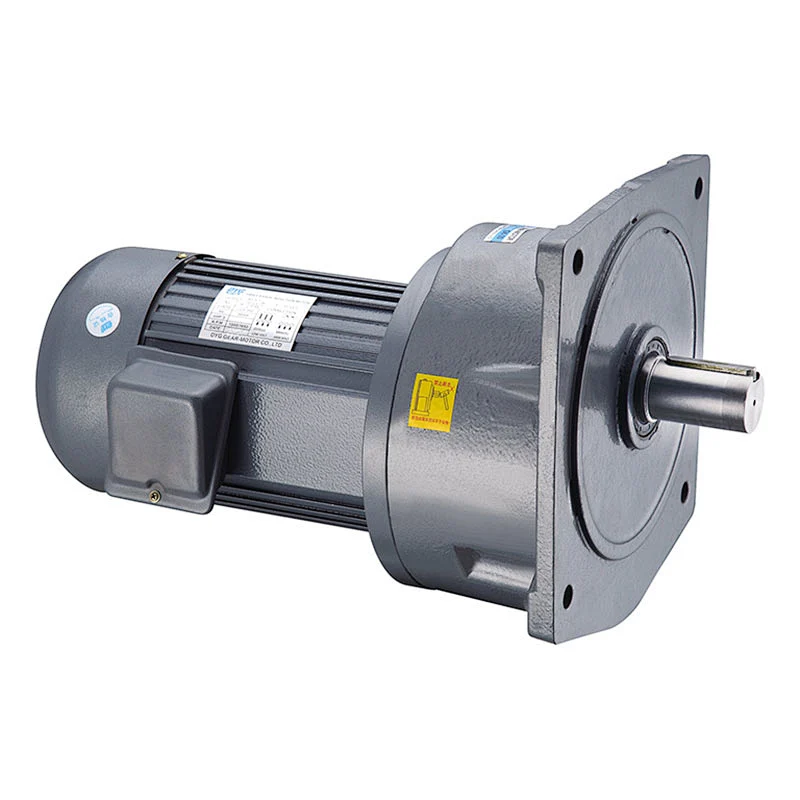

0.75-3.7KW Output Shaft 40mm Small Gear Motor (Vertical & Horizontal)

0.75-3.7KW Output Shaft 40mm Small Gear Motor (Vertical & Horizontal)

  • Model NO.: GH40 GV40
  • Min order:1 box
  • Accept Min order:Yes
  • Supply Ability:10000 box / Month
  • Country of Origin:China
  • Stock Time:25 Days

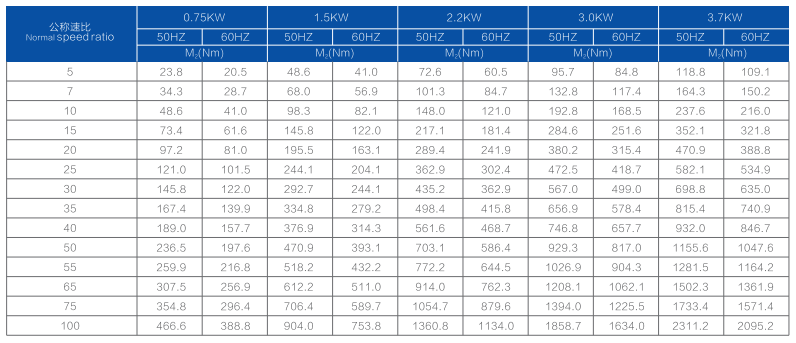

Allowable Torque

●Speed figures are based on syschronous speed(50HZ: 1500r/min, 60HZ: 1800r/min) the actual output speed under rated torque conditions, is about 2-20% less than synchronous speed.

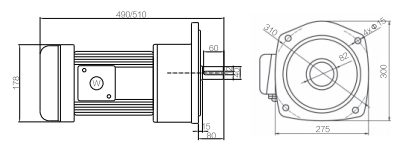

Overall dimension(Vertical)

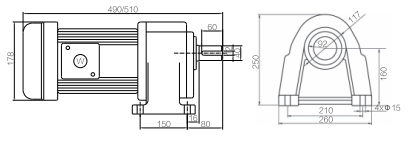

Overall dimension(Horizontal)

Gear Motors & Speed Reducers

Main Applications

Perfect for the machinery and equipment of following industry:
●Conveyor & Material handling
●Mining & Quarry
●Crusher & Cement
●Automatic production line & Mixer
●Transport & Packaging
●Food machine & Beverage
●Construction & Metal processing

  • Power:0.75 / 1.5 / 2.2 / 3.0 / 3.7KW
  • Voltage:3PH220V / 3PH380V
  • Frequency:50 / 60Hz
  • Rated Speed:1500 / 1800r/min
