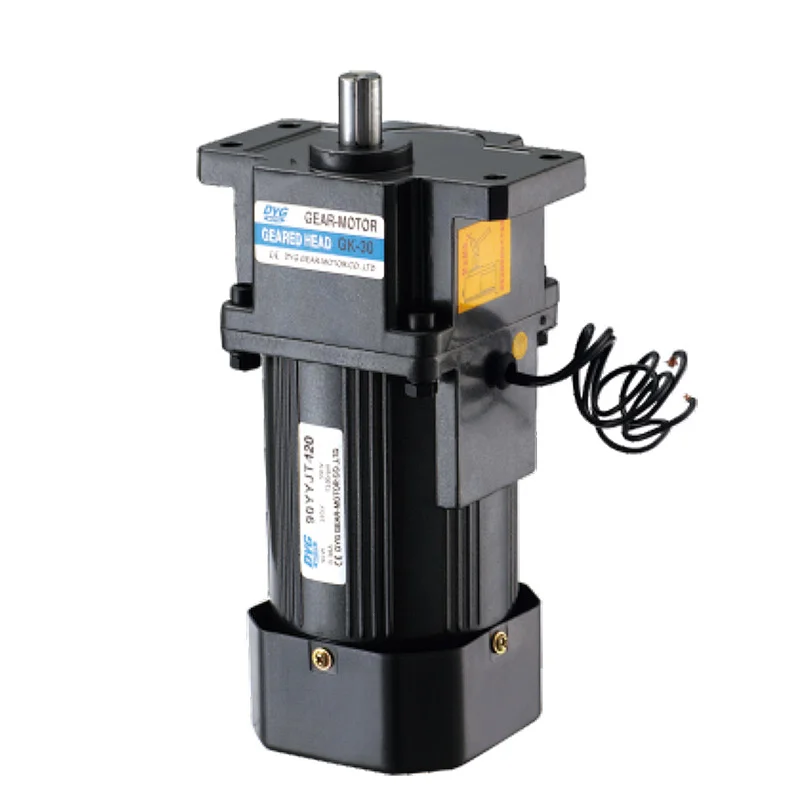

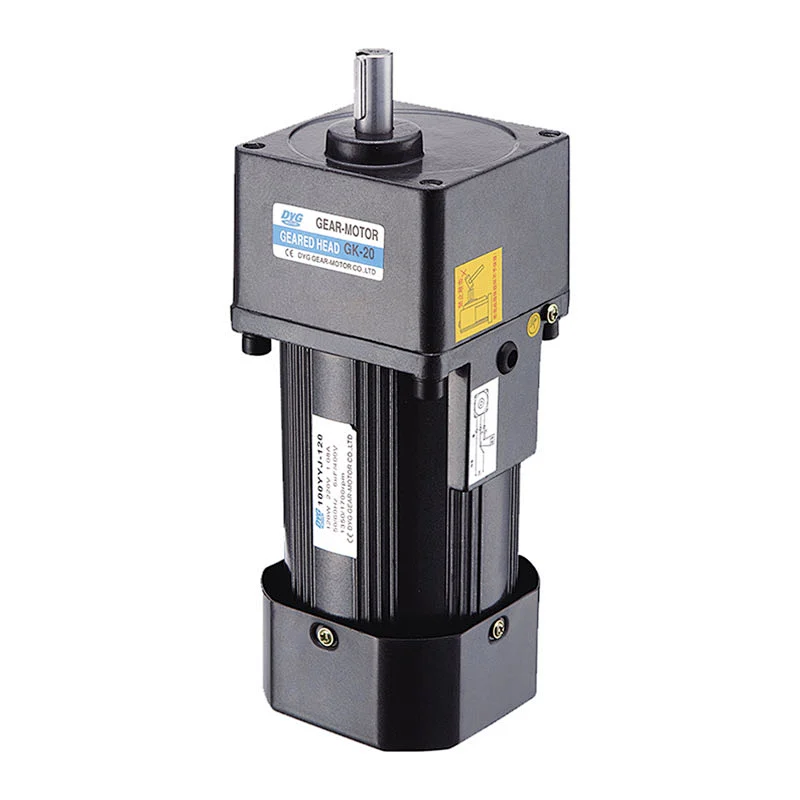

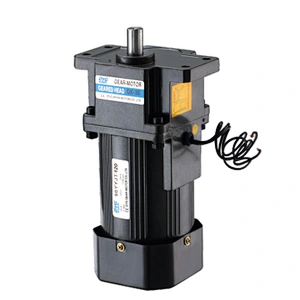

120W 104mm Micro AC Gear Motor
- Model NO.: 6IK120GU
- Min order:1 box
- Accept Min order:Yes
- Supply Ability:10000 box / Month
- Country of Origin:China
- Stock Time:25 Days

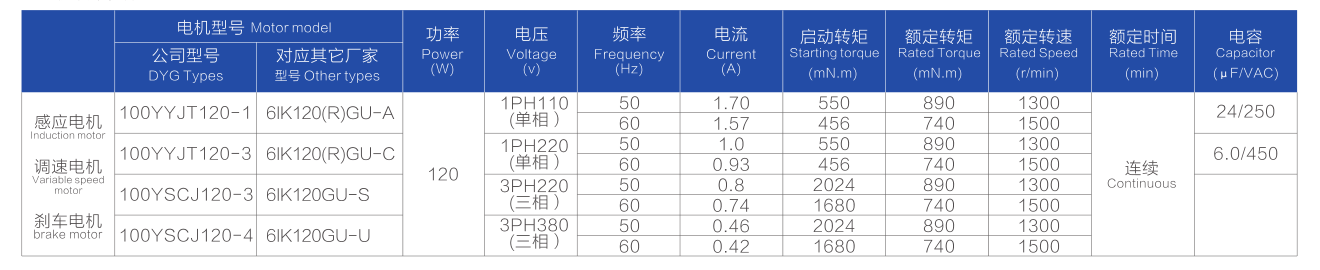

Motor Technical Parameters
●Parameters in above table refer to motor alone, without any load device.
●Permissible change in rated speed and rated current of the motor is within the range of ±5%.

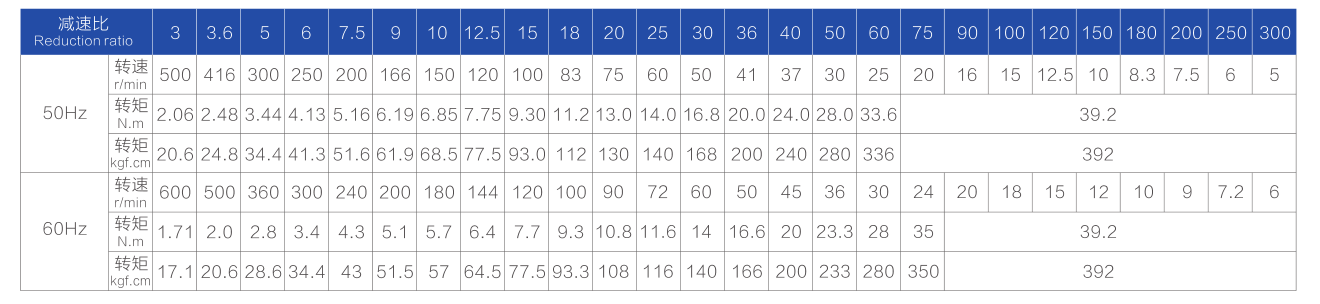

Reduction Motor Max Allowable Torque
●The speed is based on the synchronous motor speed reduction ratio as a benchmark calculated by dividing the value of. Actual speed will vary the size of the load changes in less than the values shown in 2-20%.
●Hope to the table of the reduction ratio is greater than the further reduction, it would be installed between the motor and the reducer reduction ratio of 10 the middle of the reducer.

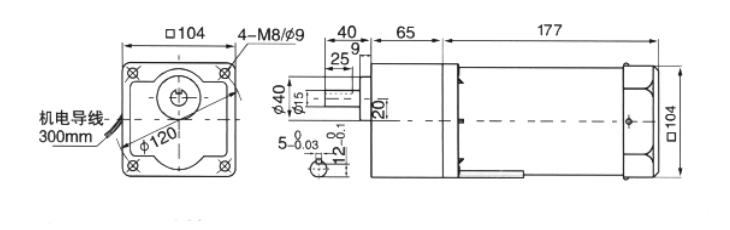

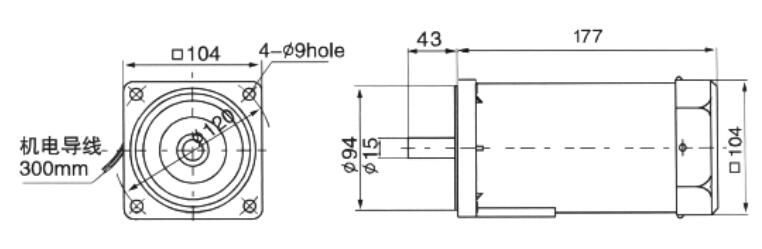

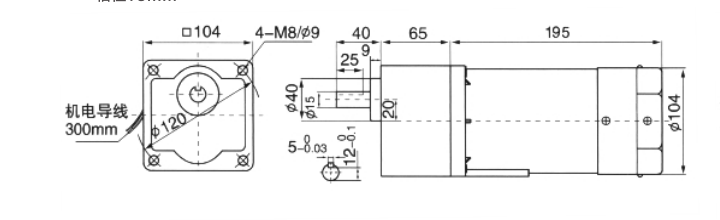

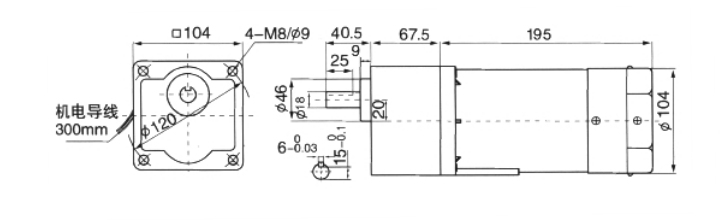

Optical axis type

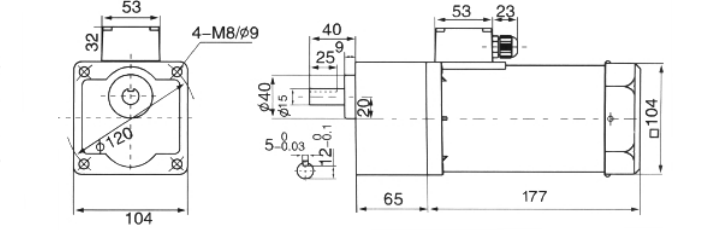

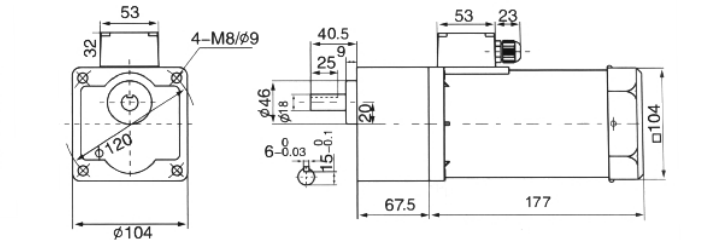

With terminal box type

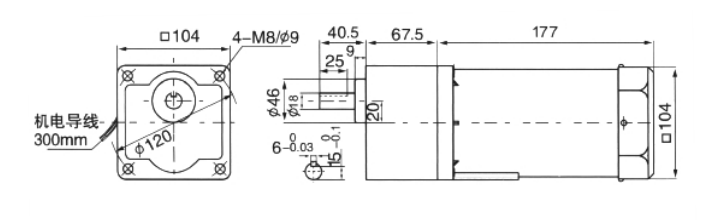

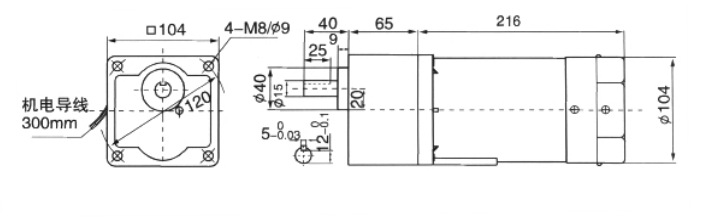

Brake optical type

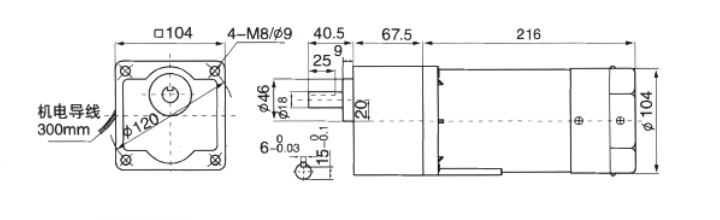

Brake speed regulation type
Perfect for the machinery and equipment of following industry:
●Conveyor & Material handling
●Mining & Quarry
●Crusher & Cement
●Automatic production line & Mixer
●Transport & Packaging
●Food machine & Beverage
●Construction & Metal processing
- Voltage：1PH110V / 1PH220V / 3PH220V / 3PH380V
- Frequency：50 / 60Hz
- Starting Torque：456 / 550 / 1680 / 2024mN.m
- Rated Speed：1300 / 1500r/min
- Rated Torque：740 / 890mN.m
- Ratio：3, 3.6.....300
