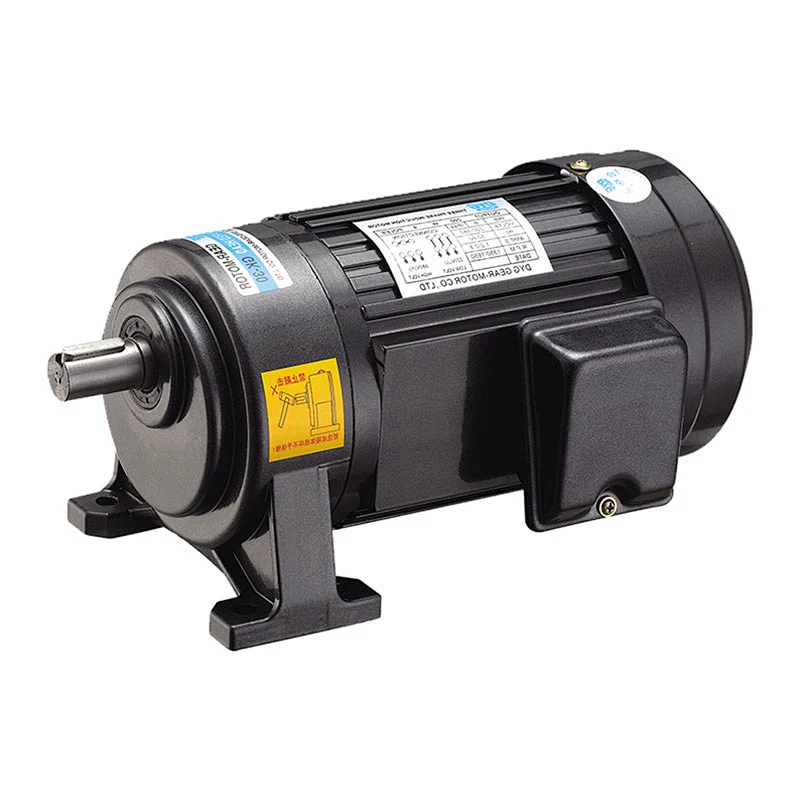

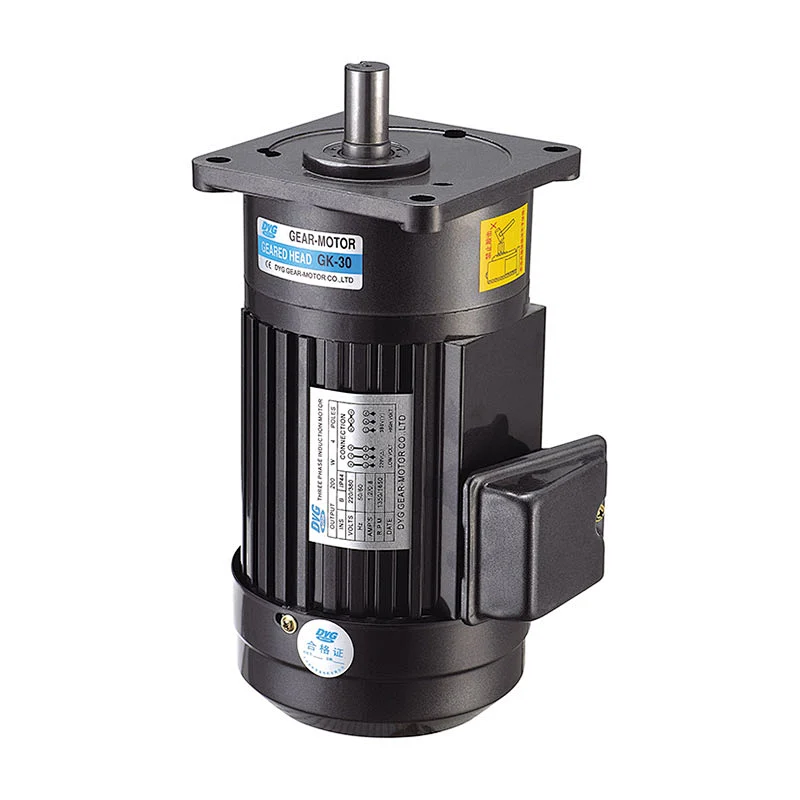

0.1-0.7KW Output Shaft 18mm Small Gear Motor (Vertical & Horizontal)
0.1-0.7KW Output Shaft 18mm Small Gear Motor (Vertical & Horizontal)

0.1-0.7KW Output Shaft 18mm Small Gear Motor (Vertical & Horizontal)

Model NO.:
GH18 GV18
Min order:
1 box
Supply Ability:
10000 box / Month
Country of Origin:
China
Stock Time:
25 Days

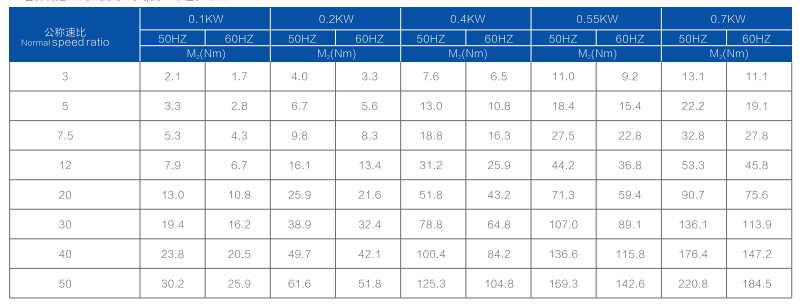

Allowable Torque


●Speed figures are based on syschronous speed(50HZ: 1500r/min, 60HZ: 1800r/min) the actual output speed under rated torque conditions, is about 2-20% less than synchronous speed.

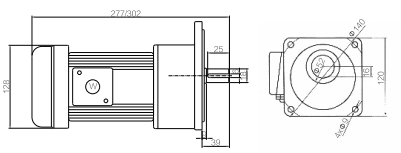

Overall dimension(Vertical)

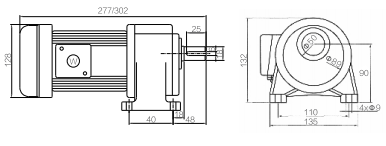

Overall dimension(Horizontal)

Gear Motors & Speed Reducers

Main Applications

Perfect for the machinery and equipment of following industry:
●Conveyor & Material handling
●Mining & Quarry
●Crusher & Cement
●Automatic production line & Mixer
●Transport & Packaging
●Food machine & Beverage
●Construction & Metal processing

  • Power:0.1 / 0.2 / 0.4 / 0.55 / 0.7KW
  • Voltage:1PH110V / 1PH220V / 3PH220V / 3PH380V
  • Frequency:50 / 60Hz
  • Rated Speed:1500 / 1800r/min
