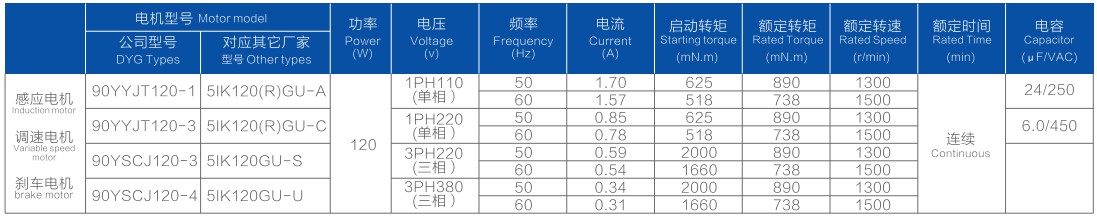

●Parameters in above table refer to motor alone, without any load device. ●Permissible change in rated speed and rated current of the motor is within the range of ±5%.

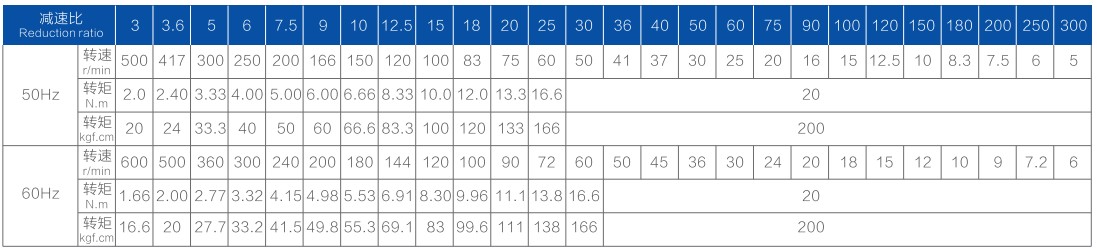

Reduction Motor Max Allowable Torque
●The speed is based on the synchronous motor speed reduction ratio as a benchmark calculated by dividing the value of. Actual speed will vary the size of the load changes in less than the values shown in 2-20%. ●Hope to the table of the reduction ratio is greater than the further reduction, it would be installed between the motor and the reducer reduction ratio of 10 the middle of the reducer.

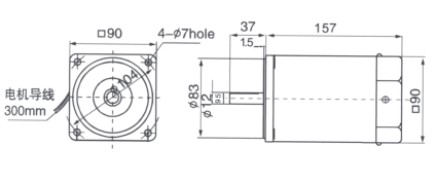

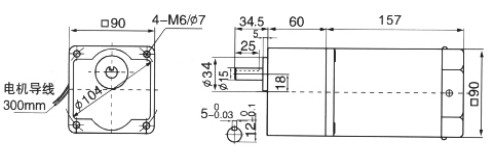

Circular shaft type (Structure: Motor）

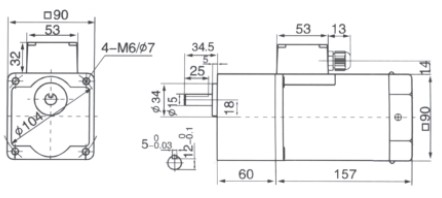

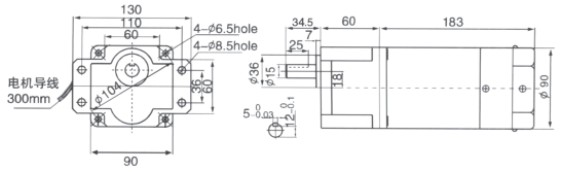

GK With terminal box type (Structure: Retarder+Motor+Terminal box）

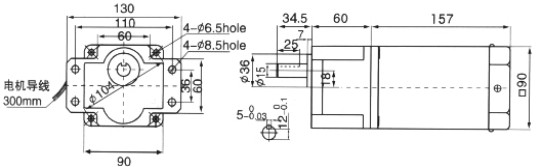

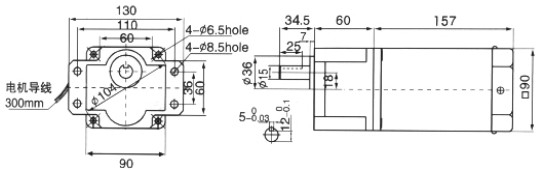

GK Optical axis type (Structure: Retarder+Motor）

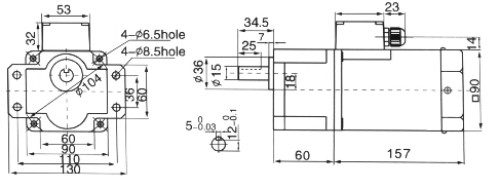

GS With terminal box type (Structure: Retarder+Motor+Speed regulation）
GS Optical axis type (Structure: Retarder+Motor）
GS Brake speed regulation type (Structure: Retarder+Motor+Speed regulation）

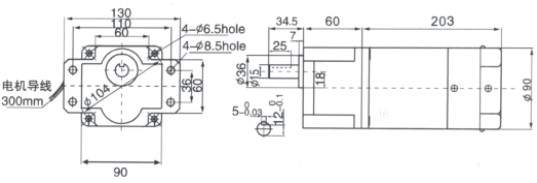

GS Brake optical type (Structure: Retarder+Motor+Brake）
GS Brake speed regulation type (Structure: Retarder+Motor+Brake+Speed regulation）
Perfect for the machinery and equipment of following industry: ●Conveyor & Material handling ●Mining & Quarry ●Crusher & Cement ●Automatic production line & Mixer ●Transport & Packaging ●Food machine & Beverage ●Construction & Metal processing
