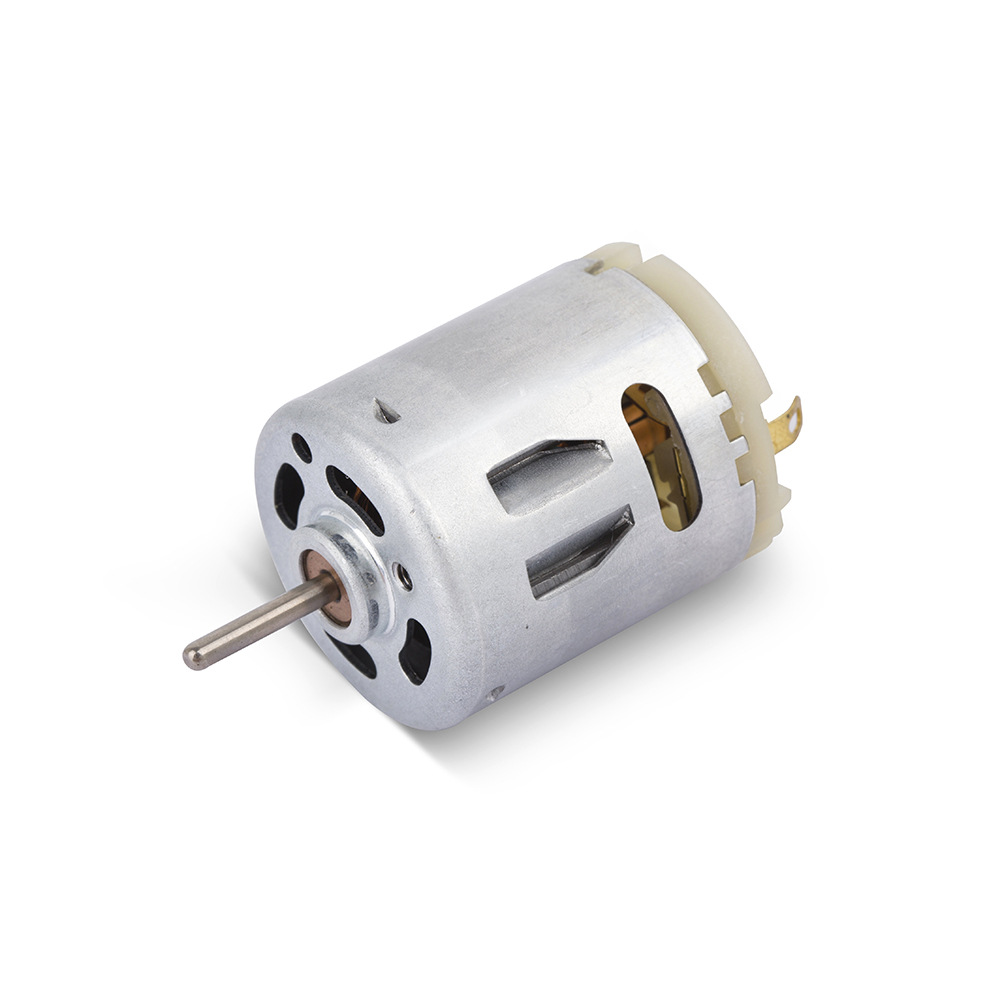

28mm Diameter 4.8V 12V 380SH 385SH Brushed DC Electric Motor Data Sheet
| Model | Voltage | No load | At maximum efficiency | Stall | ||||||
| VDC | Speed | Current | Speed | Current | Troque | Output | Efficiency | Troque | Current | |
| RPM | A | RPM | A | g.cm | W | % | g.cm | A | ||
| GRS-380SH-5520 | 4.8 | 16200 | 1.2 | 13469 | 6.5 | 145 | 20.3 | 65 | 860 | 29.2 |
| GRS-385SH-3523 | 12 | 27500 | 0.65 | 22800 | 3.3 | 110 | 25.7 | 65 | 643 | 15.8 |

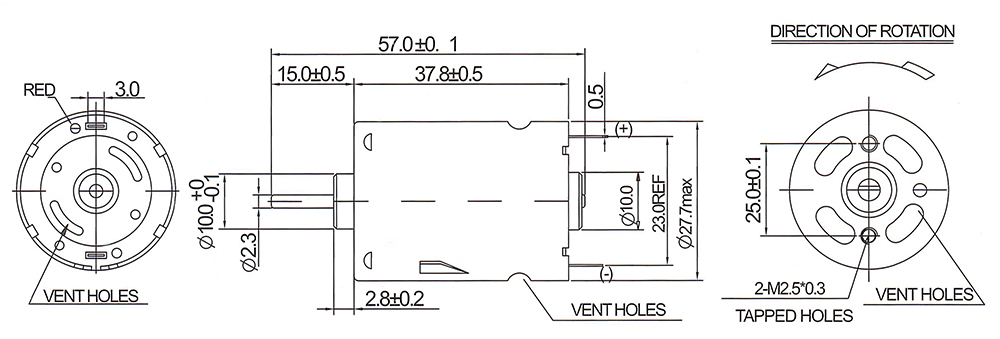

28mm Diameter 4.8V 12V 380SH 385SH Brushed DC Electric Motor Outline Drawing
DYG small brushed dc motors are widely used in water pumps, air pumps, vacuum cleaners, electric tools, and electric wrenches, Jacks, waxing machines, garden tools, automotive cooling (heating) fans, household appliances, automated office equipment, etc
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: UPS/DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven't received the item on the Delivery Time, please contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, please check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
1.Delivery: UPS/DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven't received the item on the Delivery Time, please contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, please check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It's better to offer application prototype drawings to us if possible.
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It's better to offer application prototype drawings to us if possible.
Q: What's your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What's the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Banking System, Electronic and Electrical Tools, Automation Industry, Vending Machines, Power Door Lock, Electric Door Lock, Health-Care Application, Sanitation Industry, High-Class Toy, Bank Equipments, Payment Equipments.
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Banking System, Electronic and Electrical Tools, Automation Industry, Vending Machines, Power Door Lock, Electric Door Lock, Health-Care Application, Sanitation Industry, High-Class Toy, Bank Equipments, Payment Equipments.
